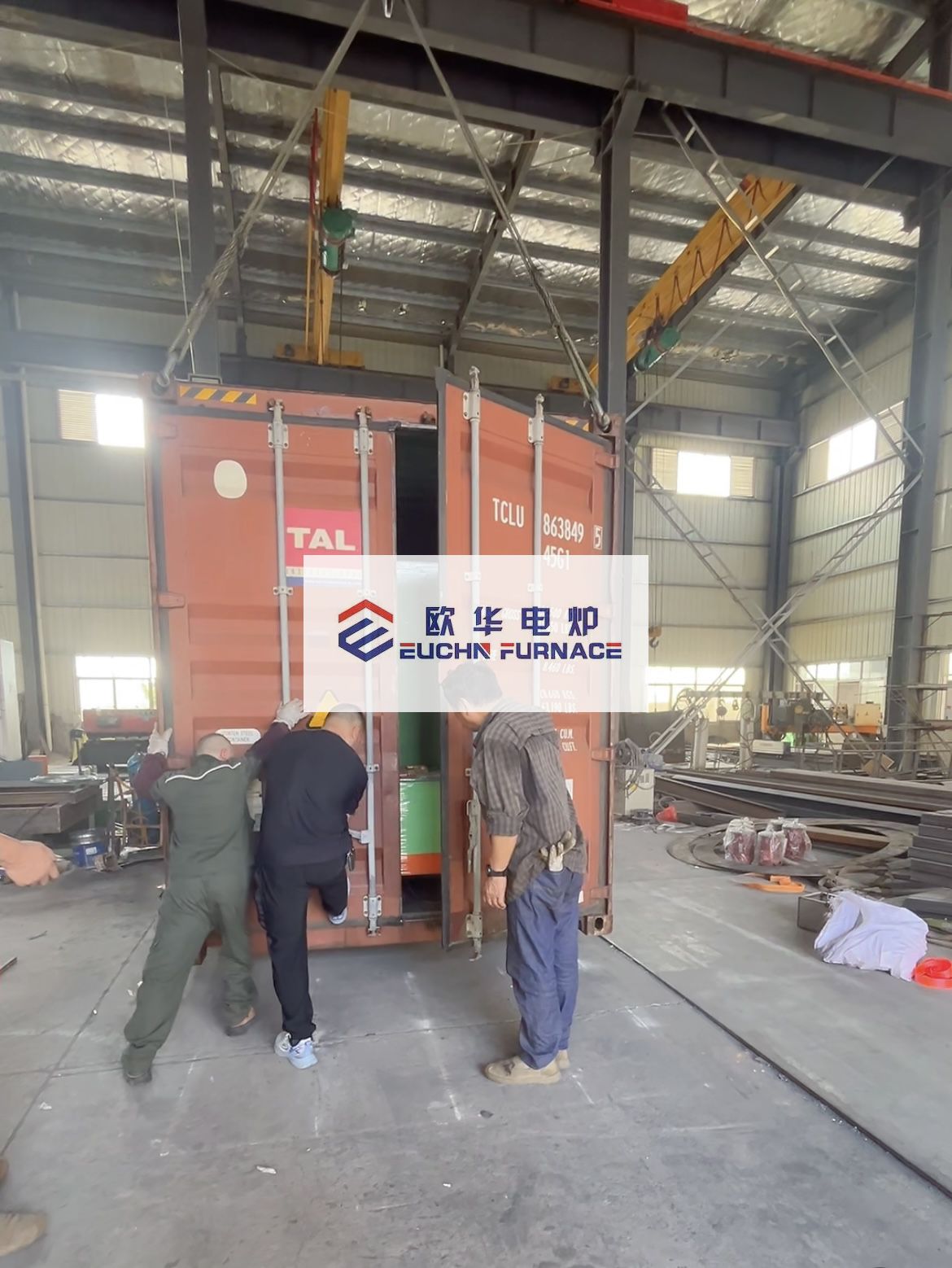

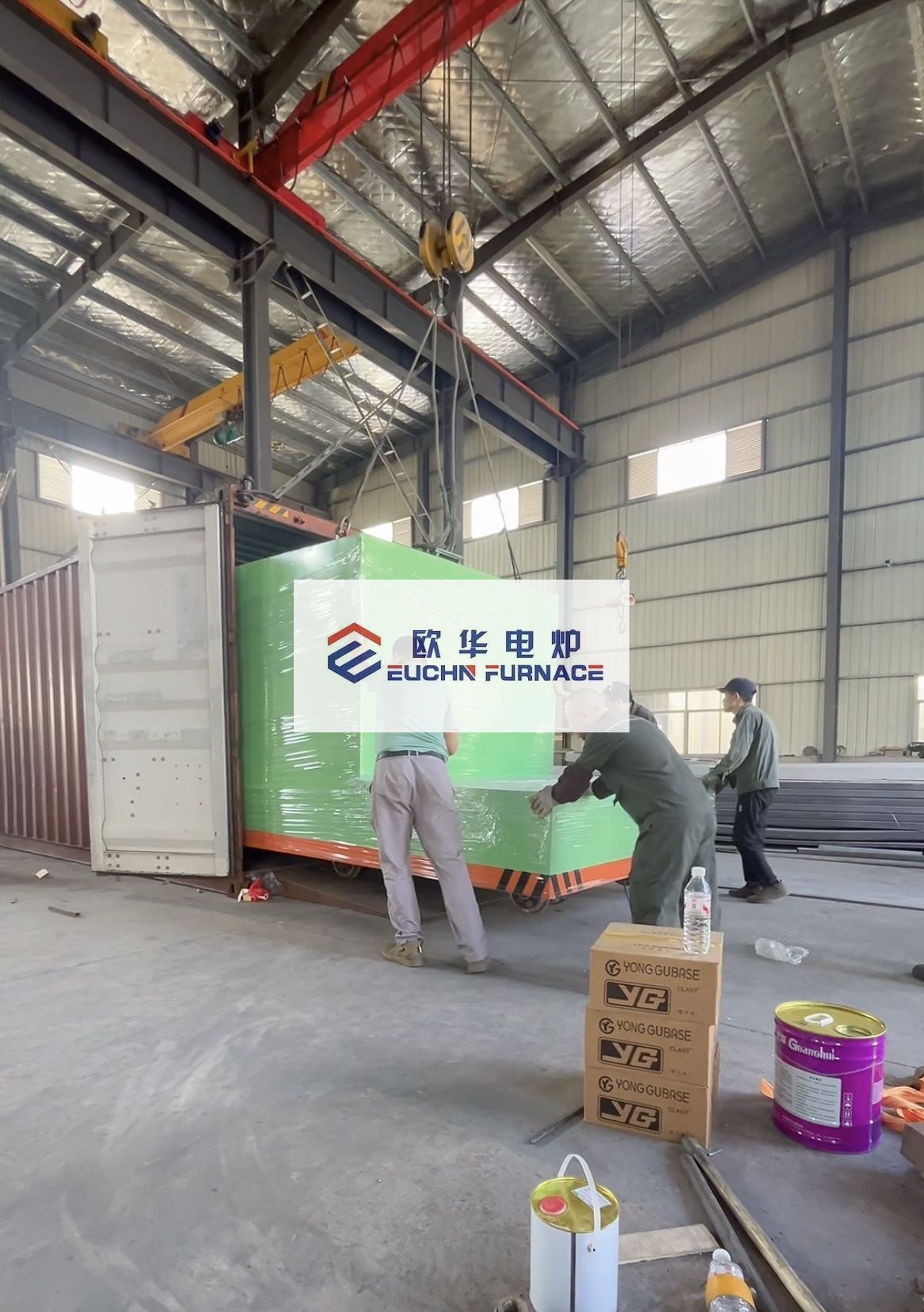

Recently, our company successfully delivered two bogie hearth resistance furnaces to a Russian client. This series of equipment is widely used for metal heat treatment and non-metallic material sintering, boasting advantages such as uniform heating, high energy efficiency, and convenient operation.
This batch delivery not only fully demonstrates our company’s technical strength and stable production capacity in the field of industrial furnace manufacturing but also reaffirms the high recognition our products and services receive from our Russian clients.
In the future, our company will continue to deeply cultivate the international market, continuously optimizing product performance and service levels to provide more professional and efficient heat treatment solutions for global clients.
Technical Parameters
| 1. Working chamber size (length×width×height): 1250×1000×900 mm | 2. Operating temperature range: 50-650°C |
| 3. Maximum temperature in the working area: 700 °C | 4. Heating power: 60 kW |
| 5. Furnace loading weight: 500 kg | 6. Number of temperature control zones: 1 |
| 7. Number of heating sides: 5 (left and right side, back, bottom, door) | 8 Type of heaters: Ribbon type heater 0Cr25AL5 |
| 9. Furnace heating type: electric | 10. Thermocouple: type “K” |
| 11. Bottom plates: Cr18Mn12Si2N | 12. Accuracy of temperature control in the furnace chamber: 0,3 class |
| 13. Temperature uniformity in the working area: ±5 °C | 14. Heating speed of empty furnace to 700°C: 2.5 hour |
| 15. Furnace body surface temperature: ≤45°C | 16. Power supply: 3 phase 380V 50 Hz |
| 17. Circulation fan power: 3 kW | 18. Type of the door: guillotine, electric driven, with pneumatic sealing, limit switch |
| 19. Hot air circulating system (Circulating fan with air cooling, air guide cover plate stainless steel 1Cr18Ni9Ti): must be do | 20. Packing in wooden boxes for control cabinets, fan, electric motors, spare parts |
| 21. Lifting door motor power:1.5kW | 22. Movie boogie drive power:2.2kW |
