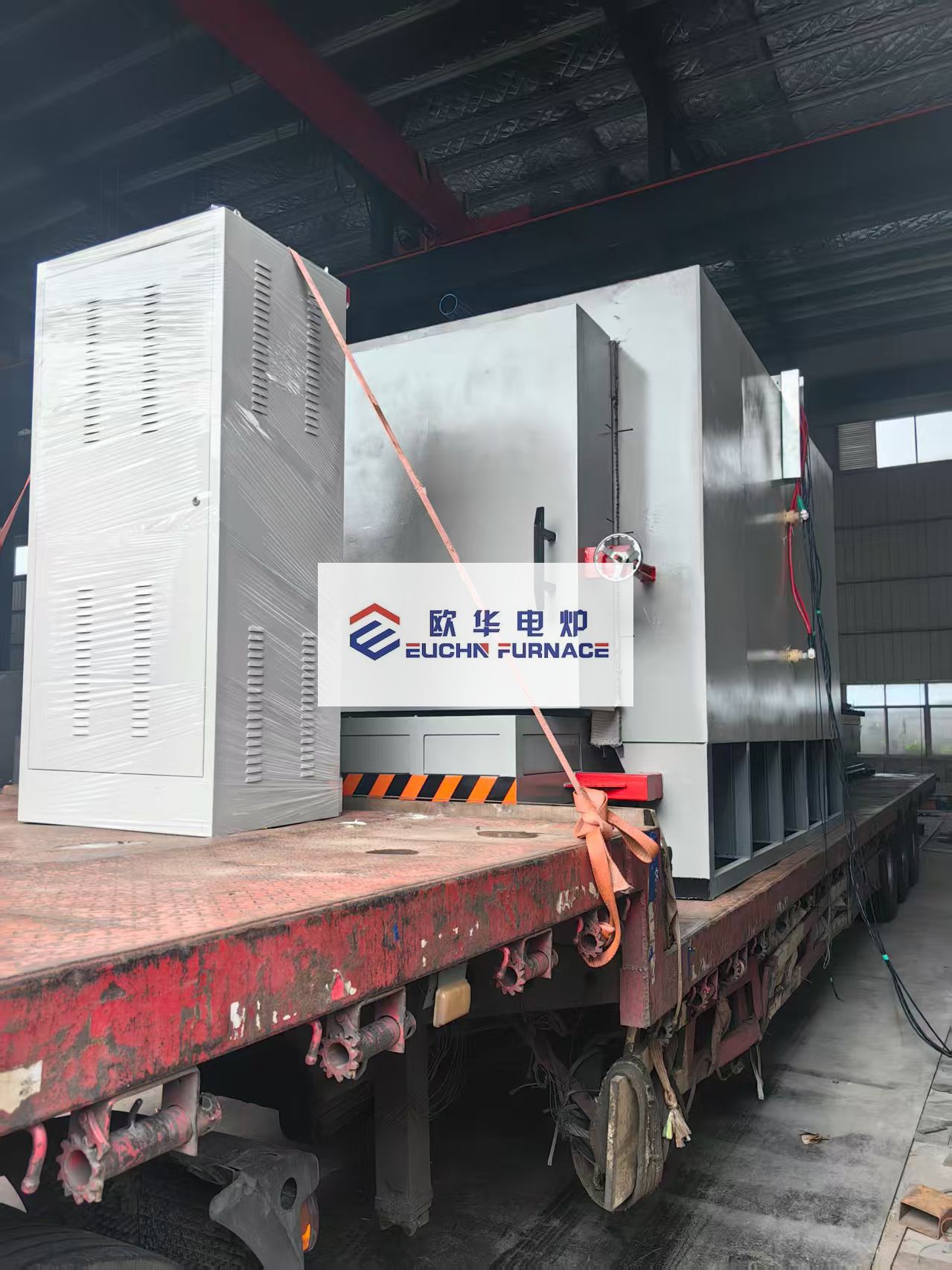

Our company recently delivered our fifth-generation RT5 series bogie hearth resistance furnace, with effective working dimensions of 3000mm × 1500mm × 1200mm. This equipment features an innovative dual-bogie, dual-door structure, and is equipped with a bogie gas supply system and a top exhaust system. These features allow it to achieve a 40% increase in heat treatment efficiency and a 30% reduction in energy consumption.
This furnace was specifically developed for heating metal workpieces before quenching and tempering, as well as for the sintering of non-metallic materials. Paired with a smart temperature control and electrical control system, it can achieve fully automated control over the heating process, heating speed, bogie movement, and door operation. This significantly improves both production efficiency and operational safety.
The delivered RT5 series furnace, with its rational structure and stable performance, has received high praise from the client, marking yet another technological advancement for our company in the field of industrial heat treatment.
Main Technical Parameters
|
1 |
Effective Working Dimensions |
3000mm × 1500mm × 1200mm (L × W × H) |
|
2 |
Chamber Dimensions |
3230mm × 1700mm × 1300mm (L × W × H) |
|
3 |
Rated Heating Power |
270 kW |
|
4 |
Rated Temperature |
950℃ |
|
5 |
Operating Temperature |
750℃ |
|
6 |
Heating Method |
Resistance strip heating |
|
7 |
Wiring Method |
Star connection |
|
8 |
Power Supply |
~380V, 50Hz |
|
9 |
Temperature Control Method |
PID program automatic temperature control |
|
10 |
Number of Control Zones |
2 zones |
|
11 |
Temperature Measurement and Control Accuracy |
Grade 0.3 |
|
12 |
Furnace Temperature Uniformity |
±10℃ |
|
13 |
Loading Capacity |
1-3 tons |
|
14 |
External Wall Temperature Rise |
≤45℃ |
|
15 |
Lining Material |
Refractory fiber |
|
16 |
Equipment Dimensions |
15000mm × 3000mm × 3500mm (L × W × H) |
|
17 |
Floor Space |
15000mm × 4000mm (L × W) |
|
18 |
Estimated Equipment Weight |
10 tons |
