Car Bottom Furnace Technology Reaches New Heights, Powering Smart and Precision Manufacturing in Heat Treatment

2025-11-28 09:37:06

With increasing demands on heat treatment quality across industries such as mechanical manufacturing, automotive parts, mold processing, and aerospace, Car Bottom Furnaces are undergoing a technical upgrade centered on high-precision control, structural optimization, and intelligent operation.

Structural Optimization for Enhanced Stability

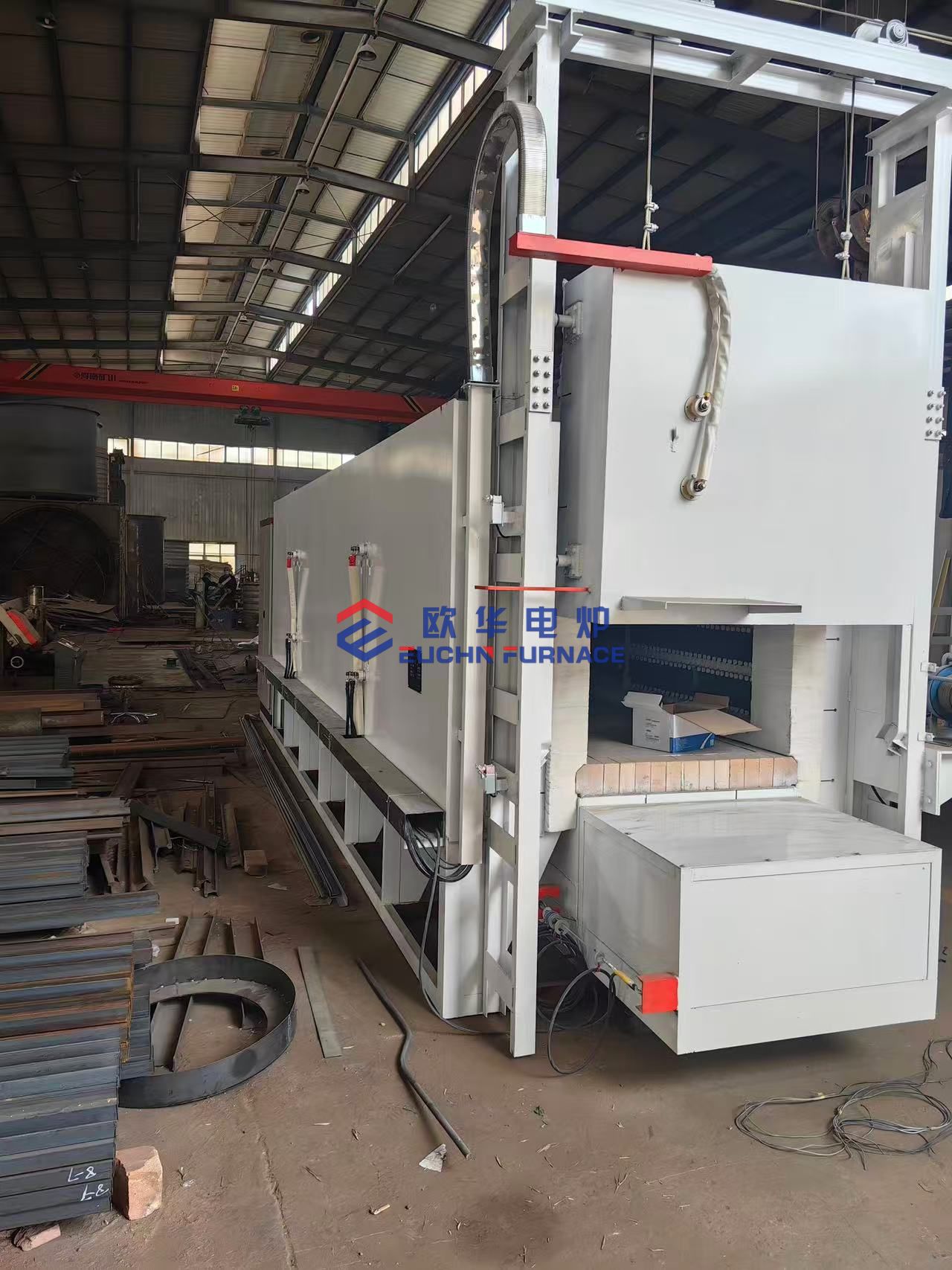

The new generation of Car Bottom Furnaces features a modular furnace body combined with an integral welded and sealed structure, enhancing rigidity and sealing performance.
The car bottom section adopts a dual-rail drive system for smooth and reliable entry and exit, suitable for heavy-duty continuous operation.
The use of a compression-sealed furnace door minimizes heat loss and significantly improves temperature uniformity.

Intelligent Control for Easier Operation

Modern Car Bottom Furnaces commonly use a PLC + touchscreen system, enabling automatic temperature increase, soaking (holding), cooling, and alarm interlocks.
Some high-end equipment can be integrated into a Manufacturing Execution System (MES), allowing for the digital and informational management of the heat treatment workshop.

Wide Application Across Various Processes

Car Bottom Furnaces can be used for processes such as annealing, normalizing, quenching and tempering (Q&T), and stress relief for materials including carbon steel, alloy steel, cast steel, aluminum alloys, and copper alloys.

Industry Trend: Large-Scale and Intelligent Development

Currently, the Car Bottom Furnace is developing toward large-scale production, intelligence, and integrated solutions.

With their high-temperature precision control, automated operation, and reliable performance, Car Bottom Furnaces will continue to provide strong support for precision machining and high-quality production in the manufacturing industry.

Technical Specifications

Small High-Temperature Car Bottom Furnace Parameter Table

Parameter	Unit	RT3-30-9	RT3-75-9	RT3-85-9	RT3-90-9	RT3-120-9	RT3-150-9	RT3-180-9	RT3-220-9
Rated Power	kW	30	75	85	90	120	150	180	220
Hearth Size (Length)	mm	950	1500	1200	1800	1800	2000	2100	2500
Hearth Size (Width)	mm	500	750	600	900	900	1000	1050	1300
Hearth Size (Height)	mm	450	600	450	600	650	700	750	900
Empty Furnace Heating Time	h	≤3	≤3	≤3	≤3	≤3.5	≤3.5	≤3.5	≤4
Empty Furnace Power Consumption	kW	11	19	13	18	20	34	40	52
Maximum Loading Capacity	kg	500	1500	1000	2500	3000	4500	5000	7000

Medium High-Temperature Car Bottom Furnace Furnace Parameter Table

Parameter	Unit	RT3-250-9	RT3-270-9	RT3-280-9	RT3-300-9	RT3-320-9	RT3-360-9
Rated Power	kW	250	270	280	300	320	360
Hearth Size (Length)	mm	2400	3000	2400	2400	3000	3500
Hearth Size (Width)	mm	1500	1500	2000	2000	1500	1500
Hearth Size (Height)	mm	800	1000	1700	1700	1500	1500
Empty Furnace Heating Time	h	≤4	≤4	≤4	≤4	≤4.5	≤4.5
Empty Furnace Power Consumption	kW	≤65	≤70	≤80	≤85	≤78	≤90
Maximum Loading Capacity	kg	8300	9000	10000	11000	12000	13500

Large High-Temperature Car Bottom Furnace Furnace Parameter Table

Parameter	Unit	RT3-480-9	RT3-500-9	RT3-540-9	RT3-570-9	RT3-600-9	RT3-660-9
Rated Power	kW	480	500	540	570	600	660
Hearth Size (Length)	mm	4500	4500	5000	5000	5000	5000
Hearth Size (Width)	mm	2000	2500	2000	2500	2000	2500
Hearth Size (Height)	mm	1500	1500	1500	1500	1500	1700
Empty Furnace Heating Time	h	≤4.5	≤4.5	≤4.5	≤4.5	≤4.5	≤4.5
Empty Furnace Power Consumption	kW	≤130	≤140	≤145	≤160	≤170	≤200
Maximum Loading Capacity	kg	17000	18000	20000	22000	22000	22000
